UEnemyHpBarWidget 클래스 참조

#include <EnemyHpBarWidget.h>

UEnemyHpBarWidget에 대한 상속 다이어그램 :

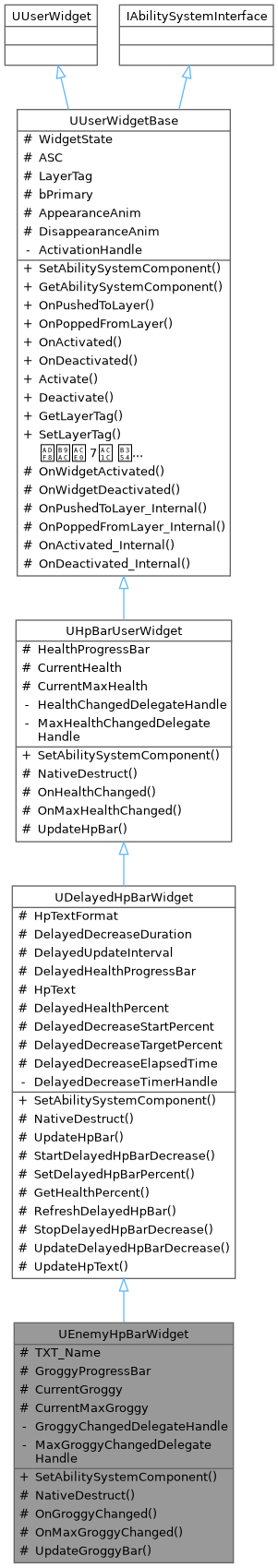

UEnemyHpBarWidget에 대한 협력 다이어그램:

Public 멤버 함수
virtual void	SetAbilitySystemComponent (AActor *InOwner) override
UUserWidgetBase(으)로부터 상속된 Public 멤버 함수
virtual UAbilitySystemComponent *	GetAbilitySystemComponent () const override
virtual void	OnPushedToLayer ()
virtual void	OnPoppedFromLayer ()
virtual void	OnActivated ()
virtual void	OnDeactivated ()
void	Activate ()
void	Deactivate ()
FORCEINLINE FGameplayTag	GetLayerTag () const
FORCEINLINE void	SetLayerTag (const FGameplayTag InTag)
FORCEINLINE bool	IsPrimary () const
FORCEINLINE void	SetPrimary (const bool InPrimary)
FORCEINLINE EWidgetState	GetWidgetState () const
FORCEINLINE void	SetWidgetState (const EWidgetState InState)
FORCEINLINE UWaitForWidgetActivation *	GetActivationHandle ()
FORCEINLINE bool	HasAppearanceAnim () const
FORCEINLINE bool	HasDisappearanceAnim () const

Protected 멤버 함수
virtual void	NativeDestruct () override
virtual void	OnGroggyChanged (const FOnAttributeChangeData &ChangeData)
virtual void	OnMaxGroggyChanged (const FOnAttributeChangeData &ChangeData)
void	UpdateGroggyBar ()
UDelayedHpBarWidget(으)로부터 상속된 Protected 멤버 함수
virtual void	UpdateHpBar () override
void	StartDelayedHpBarDecrease (float InTargetPercent)
void	SetDelayedHpBarPercent (float InPercent)
float	GetHealthPercent () const
void	RefreshDelayedHpBar ()
void	StopDelayedHpBarDecrease ()
void	UpdateDelayedHpBarDecrease ()
void	UpdateHpText () const
UHpBarUserWidget(으)로부터 상속된 Protected 멤버 함수
virtual void	OnHealthChanged (const FOnAttributeChangeData &ChangeData)
virtual void	OnMaxHealthChanged (const FOnAttributeChangeData &ChangeData)
UUserWidgetBase(으)로부터 상속된 Protected 멤버 함수
virtual void	OnWidgetActivated ()
virtual void	OnWidgetDeactivated ()
void	OnPushedToLayer_Internal ()
void	OnPoppedFromLayer_Internal ()
void	OnActivated_Internal ()
void	OnDeactivated_Internal ()

Protected 속성
TObjectPtr< UTextBlock >	TXT_Name
TObjectPtr< UProgressBar >	GroggyProgressBar
float	CurrentGroggy = 0.0f
float	CurrentMaxGroggy = 1.0f
UDelayedHpBarWidget(으)로부터 상속된 Protected 속성
FText	HpTextFormat = FText::FromString("{CHP} / {MHP}")
float	DelayedDecreaseDuration = 0.5f
float	DelayedUpdateInterval = 0.016f
TObjectPtr< UProgressBar >	DelayedHealthProgressBar
TObjectPtr< UTextBlock >	HpText
float	DelayedHealthPercent = 1.0f
float	DelayedDecreaseStartPercent = 1.0f
float	DelayedDecreaseTargetPercent = 1.0f
float	DelayedDecreaseElapsedTime = 0.0f
UHpBarUserWidget(으)로부터 상속된 Protected 속성
TObjectPtr< UProgressBar >	HealthProgressBar
float	CurrentHealth = 0.0f
float	CurrentMaxHealth = 1.0f
UUserWidgetBase(으)로부터 상속된 Protected 속성
EWidgetState	WidgetState
TObjectPtr< UAbilitySystemComponent >	ASC
FGameplayTag	LayerTag
bool	bPrimary = false
TObjectPtr< UWidgetAnimation >	AppearanceAnim
TObjectPtr< UWidgetAnimation >	DisappearanceAnim

Private 속성
FDelegateHandle	GroggyChangedDelegateHandle
FDelegateHandle	MaxGroggyChangedDelegateHandle

멤버 함수 문서화

NativeDestruct()

void UEnemyHpBarWidget::NativeDestruct ( )

overrideprotectedvirtual

UDelayedHpBarWidget(으)로부터 재구현되었습니다.

{
    if (ASC)
    {
        ASC->GetGameplayAttributeValueChangeDelegate(UEnemyAttributeSet::GetGroggyAttribute()).Remove(GroggyChangedDelegateHandle);
        ASC->GetGameplayAttributeValueChangeDelegate(UEnemyAttributeSet::GetMaxGroggyAttribute()).Remove(MaxGroggyChangedDelegateHandle);
    }

    Super::NativeDestruct();
}

OnGroggyChanged()

void UEnemyHpBarWidget::OnGroggyChanged ( const FOnAttributeChangeData &  ChangeData )

protectedvirtual

{
    CurrentGroggy = ChangeData.NewValue;
    UpdateGroggyBar();
}

이 함수 내부에서 호출하는 함수들에 대한 그래프입니다.:

OnMaxGroggyChanged()

void UEnemyHpBarWidget::OnMaxGroggyChanged ( const FOnAttributeChangeData &  ChangeData )

protectedvirtual

{
    CurrentMaxGroggy = ChangeData.NewValue;
    UpdateGroggyBar();
}

이 함수 내부에서 호출하는 함수들에 대한 그래프입니다.:

SetAbilitySystemComponent()

void UEnemyHpBarWidget::SetAbilitySystemComponent ( AActor *  InOwner )

overridevirtual

UDelayedHpBarWidget(으)로부터 재구현되었습니다.

{
    Super::SetAbilitySystemComponent(InOwner);

    if (GroggyProgressBar == nullptr)
    {
        return;
    }

    if (ASC == nullptr)
    {
        LOG_ERROR(LogCK, "Failed to get ASC for Groggy");
        return;
    }

    const UEnemyAttributeSet* CurrentAttributeSet = ASC->GetSet<UEnemyAttributeSet>();

    if (CurrentAttributeSet == nullptr)
    {
        LOG_ERROR(LogCK, "Failed to get EnemyAttributeSet");
        return;
    }

    if (GroggyChangedDelegateHandle.IsValid())
    {
        ASC->GetGameplayAttributeValueChangeDelegate(UEnemyAttributeSet::GetGroggyAttribute()).Remove(GroggyChangedDelegateHandle);
    }

    if (MaxGroggyChangedDelegateHandle.IsValid())
    {
        ASC->GetGameplayAttributeValueChangeDelegate(UEnemyAttributeSet::GetMaxGroggyAttribute()).Remove(MaxGroggyChangedDelegateHandle);
    }

    GroggyChangedDelegateHandle = ASC->GetGameplayAttributeValueChangeDelegate(UEnemyAttributeSet::GetGroggyAttribute()).AddUObject(this, &ThisClass::OnGroggyChanged);
    MaxGroggyChangedDelegateHandle = ASC->GetGameplayAttributeValueChangeDelegate(UEnemyAttributeSet::GetMaxGroggyAttribute()).AddUObject(this, &ThisClass::OnMaxGroggyChanged);

    CurrentGroggy = CurrentAttributeSet->GetGroggy();
    CurrentMaxGroggy = CurrentAttributeSet->GetMaxGroggy();
    UpdateGroggyBar();
}

이 함수 내부에서 호출하는 함수들에 대한 그래프입니다.:

UpdateGroggyBar()

void UEnemyHpBarWidget::UpdateGroggyBar ( )

protected

{
    if (GroggyProgressBar == nullptr)
    {
        return;
    }

    GroggyProgressBar->SetPercent((CurrentMaxGroggy > 0.0f) ? (CurrentGroggy / CurrentMaxGroggy) : 0.0f);
}

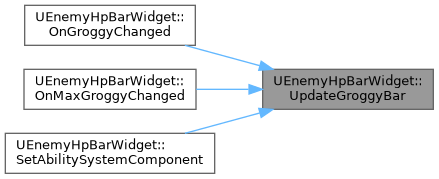

이 함수를 호출하는 함수들에 대한 그래프입니다.:

멤버 데이터 문서화

CurrentGroggy

float UEnemyHpBarWidget::CurrentGroggy = 0.0f

protected

CurrentMaxGroggy

float UEnemyHpBarWidget::CurrentMaxGroggy = 1.0f

protected

GroggyChangedDelegateHandle

FDelegateHandle UEnemyHpBarWidget::GroggyChangedDelegateHandle

private

GroggyProgressBar

TObjectPtr<UProgressBar> UEnemyHpBarWidget::GroggyProgressBar

protected

MaxGroggyChangedDelegateHandle

FDelegateHandle UEnemyHpBarWidget::MaxGroggyChangedDelegateHandle

private

TXT_Name

TObjectPtr<UTextBlock> UEnemyHpBarWidget::TXT_Name

protected

---

이 클래스에 대한 문서화 페이지는 다음의 파일들로부터 생성되었습니다.:

• Source/CK_UE/UI/HUD/HpBar/EnemyHpBarWidget.h
• Source/CK_UE/UI/HUD/HpBar/EnemyHpBarWidget.cpp
