UGA_Dash 클래스 참조

#include <GA_Dash.h>

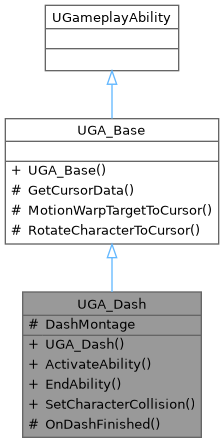

UGA_Dash에 대한 상속 다이어그램 :

UGA_Dash에 대한 협력 다이어그램:

Public 멤버 함수
virtual void	OnGiveAbility (const FGameplayAbilityActorInfo *ActorInfo, const FGameplayAbilitySpec &Spec) override
virtual void	ActivateAbility (const FGameplayAbilitySpecHandle Handle, const FGameplayAbilityActorInfo *ActorInfo, const FGameplayAbilityActivationInfo ActivationInfo, const FGameplayEventData *TriggerEventData) override
virtual void	EndAbility (const FGameplayAbilitySpecHandle Handle, const FGameplayAbilityActorInfo *ActorInfo, const FGameplayAbilityActivationInfo ActivationInfo, bool bReplicateEndAbility, bool bWasCancelled) override
void	SetCharacterCollision (ECollisionResponse InChannel) const
void	OnDashStart (FGameplayEventData Payload)
void	OnDashEnd ()
void	OnDashFinished ()
UGA_SkillBase(으)로부터 상속된 Public 멤버 함수
virtual void	ApplyCooldown (const FGameplayAbilitySpecHandle Handle, const FGameplayAbilityActorInfo *ActorInfo, const FGameplayAbilityActivationInfo ActivationInfo) const override
const FGameplayTagContainer *	GetCooldownTags () const
UGA_Base(으)로부터 상속된 Public 멤버 함수
	UGA_Base ()

Protected 멤버 함수
virtual void	OnAbilityMontageCompleted () override
virtual void	OnAbilityMontageInterrupted () override
virtual void	OnAbilityMontageCancellable () override
UGA_SkillBase(으)로부터 상속된 Protected 멤버 함수
virtual void	ApplyCombatData () override
virtual bool	CheckCost (const FGameplayAbilitySpecHandle Handle, const FGameplayAbilityActorInfo *ActorInfo, FGameplayTagContainer *OptionalRelevantTags) const override
virtual void	ApplyCost (const FGameplayAbilitySpecHandle Handle, const FGameplayAbilityActorInfo *ActorInfo, const FGameplayAbilityActivationInfo ActivationInfo) const override
float	GetSkillMontageSectionLength (const UAnimMontage *Montage, FName SectionName, bool bApplyPlayRate=false, float PlayRate=1.0f) const
bool	HasClearStrikePath (const AMainPlayerCharacter *Player, const AActor *TargetActor) const
void	SetAvatarPawnCollisionResponse (ECollisionResponse Response) const
float	GetPlayerCurrentWeaponAttackRange () const
void	SetAvatarMeshHidden (bool bHidden) const
void	ResetSkillMontagePlayRate () const
AActor *	GetTargetActor () const
UAnimMontage *	GetSkillMontage (FGameplayTag PlayMontageTag=FGameplayTag::EmptyTag) const
bool	ContainsAllMontageSections (const UAnimMontage *Montage, TArray< FName > SectionNames) const
template<typename T >
const T *	GetExtendedData () const
template<typename T >
bool	HasExtendedData () const
UGA_CombatBase(으)로부터 상속된 Protected 멤버 함수
void	SetupHitCheckListener ()
void	OnHitCheckStart (FGameplayEventData Payload)
void	OnHitCheckEnd (FGameplayEventData Payload)
void	OnTraceResultCallback (const FGameplayAbilityTargetDataHandle &TargetDataHandle, float CombatDataLevel, int32 CombatHitDataIndex)
void	OnFinisherResultCallback (const FGameplayAbilityTargetDataHandle &TargetDataHandle, float CombatDataLevel, int32 CombatHitDataIndex)
virtual TOptional< FTransform >	GetTraceTransformForHitCheck () const
void	ApplyEffectsToSelf (const FGameplayAbilitySpecHandle Handle, const FGameplayAbilityActorInfo *ActorInfo, const FGameplayAbilityActivationInfo ActivationInfo)
FCombatHitPayload	BuildCombatHitPayload (const FCombatHitData &HitData, float DamageMultiplier, bool bRequestKnockback)
TArray< FGameplayEffectSpecHandle >	BuildCombatEffectSpecs (const FCombatHitData &HitData, float DamageMultiplier)
FGameplayEffectSpecHandle	BuildEffectSpec (const FCombatEffectData &EffectData, float CombatDataLevel)
void	PlayCombatHitAudio (const FVector &HitLocation)
void	CacheAudioTagComponents ()
const FKnockbackData *	FindKnockbackData (const FCombatHitData &HitData) const
void	NotifyCameraHitConfirmed () const
float	GetAttackSpeedRate () const
void	UpdateAttackWarpTargetForRange (FName WarpTargetName=FName("Target"))
void	UpdateAttackWarpTargetForRange (FName WarpTargetName, ITargetableInterface *Target)
UGA_Base(으)로부터 상속된 Protected 멤버 함수
UCharacterMotionWarpingComponentBase *	GetMotionWarpingComponent () const
void	SetupCancelableListener ()
void	OnCancelableInputDetected (FGameplayEventData Payload)
virtual void	HandleCancelable (FGameplayEventData Payload)

Protected 속성
TObjectPtr< UAT_ApplyVelocityCurve >	ActiveVelocityTask
TObjectPtr< UCurveFloat >	DashProgressCurve
float	DashDistance = 750.0f
UGA_SkillBase(으)로부터 상속된 Protected 속성
FGameplayTag	CooldownTag
float	CostValue
float	CooldownDuration
UGA_CombatBase(으)로부터 상속된 Protected 속성
TObjectPtr< UCombatDataBase >	CombatData
float	AttackRange = 450.0f
float	AttackRangeCorrectionDistance = 250.0f
float	AttackRangeCorrectionInnerOffset = 30.0f
TObjectPtr< UAT_Trace >	ActiveTraceTask
TArray< TSubclassOf< UGameplayEffect > >	SelfEffectClasses
FGameplayTag	WeaponHitCueTag
TArray< TObjectPtr< UAudioEmitterComponent > >	CachedAudioTagComponents

Private 멤버 함수
float	GetNormalizedFactor (const float Duration) const

Private 속성
FVector	DashDirection = FVector::ZeroVector
float	TotalCurveIntegral = 0.0f

멤버 함수 문서화

ActivateAbility()

void UGA_Dash::ActivateAbility ( const FGameplayAbilitySpecHandle  Handle, const FGameplayAbilityActorInfo *  ActorInfo, const FGameplayAbilityActivationInfo  ActivationInfo, const FGameplayEventData *  TriggerEventData  )

overridevirtual

UGA_SkillBase(으)로부터 재구현되었습니다.

{
    Super::ActivateAbility(Handle, ActorInfo, ActivationInfo, TriggerEventData);

    ACharacter* Character = CastChecked<ACharacter>(GetAvatarActorFromActorInfo());
    FVector InputDirect = Character->GetLastMovementInputVector();

    if (InputDirect.SizeSquared2D() > 0.0f)
    {
        Character->SetActorRotation(FRotator(0.0f, InputDirect.Rotation().Yaw, 0.0f));
    }
    else
    {
        InputDirect = Character->GetActorForwardVector();
    }

    InputDirect.Z = 0.0f;
    InputDirect.Normalize();
    DashDirection = InputDirect;

    if (UCharacterMotionWarpingComponentBase* WarpComponent = GetMotionWarpingComponent())
    {
        WarpComponent->StopMotionWarp();
    }

    SetupCancelableListener();
    SetCharacterCollision(ECR_Ignore);

    if (UAbilityTask_WaitGameplayEvent* WaitStart = UAbilityTask_WaitGameplayEvent::WaitGameplayEvent(this, TAG_CHARACTER_STATE_ISDASHING, nullptr, true, false))
    {
        WaitStart->EventReceived.AddDynamic(this, &ThisClass::OnDashStart);
        WaitStart->ReadyForActivation();
    }

    if (UAbilityTask_WaitGameplayTagRemoved* WaitEnd = UAbilityTask_WaitGameplayTagRemoved::WaitGameplayTagRemove(this, TAG_CHARACTER_STATE_ISDASHING))
    {
        WaitEnd->Removed.AddDynamic(this, &ThisClass::OnDashEnd);
        WaitEnd->ReadyForActivation();
    }
}

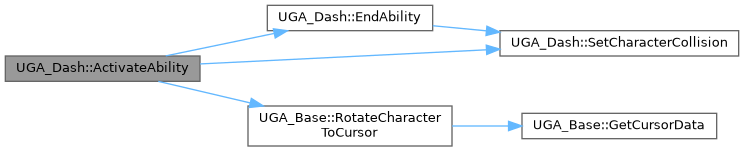

이 함수 내부에서 호출하는 함수들에 대한 그래프입니다.:

EndAbility()

void UGA_Dash::EndAbility ( const FGameplayAbilitySpecHandle  Handle, const FGameplayAbilityActorInfo *  ActorInfo, const FGameplayAbilityActivationInfo  ActivationInfo, bool  bReplicateEndAbility, bool  bWasCancelled  )

overridevirtual

UGA_CombatBase(으)로부터 재구현되었습니다.

{
    if (IsEndAbilityValid(Handle, ActorInfo))
    {
        SetCharacterCollision(ECR_Block);
    }

    OnDashEnd();
    Super::EndAbility(Handle, ActorInfo, ActivationInfo, bReplicateEndAbility, bWasCancelled);
}

이 함수 내부에서 호출하는 함수들에 대한 그래프입니다.:

이 함수를 호출하는 함수들에 대한 그래프입니다.:

GetNormalizedFactor()

float UGA_Dash::GetNormalizedFactor ( const float  Duration ) const

private

{
    return DashDistance / (Duration * TotalCurveIntegral);
}

이 함수를 호출하는 함수들에 대한 그래프입니다.:

OnAbilityMontageCancellable()

void UGA_Dash::OnAbilityMontageCancellable ( )

overrideprotectedvirtual

UGA_Base(으)로부터 재구현되었습니다.

{
    Super::OnAbilityMontageCancellable();
    OnDashFinished();
}

이 함수 내부에서 호출하는 함수들에 대한 그래프입니다.:

OnAbilityMontageCompleted()

void UGA_Dash::OnAbilityMontageCompleted ( )

overrideprotectedvirtual

UGA_Base(으)로부터 재구현되었습니다.

{
    Super::OnAbilityMontageCompleted();
    OnDashFinished();
}

이 함수 내부에서 호출하는 함수들에 대한 그래프입니다.:

OnAbilityMontageInterrupted()

void UGA_Dash::OnAbilityMontageInterrupted ( )

overrideprotectedvirtual

UGA_Base(으)로부터 재구현되었습니다.

{
    Super::OnAbilityMontageInterrupted();
    OnDashFinished();
}

이 함수 내부에서 호출하는 함수들에 대한 그래프입니다.:

OnDashEnd()

void UGA_Dash::OnDashEnd

(

)

{
    if (!IsValid(ActiveVelocityTask))
    {
        return;
    }

    ActiveVelocityTask->EndTask();
    ActiveVelocityTask = nullptr;
}

이 함수를 호출하는 함수들에 대한 그래프입니다.:

OnDashFinished()

void UGA_Dash::OnDashFinished

(

)

{
    OnDashEnd();
    EndAbility(CurrentSpecHandle, CurrentActorInfo, CurrentActivationInfo, false, false);
}

이 함수 내부에서 호출하는 함수들에 대한 그래프입니다.:

이 함수를 호출하는 함수들에 대한 그래프입니다.:

OnDashStart()

void UGA_Dash::OnDashStart

(

FGameplayEventData

Payload

)

{
    const float NormalizationFactor = GetNormalizedFactor(TotalCurveIntegral);

    UAT_ApplyVelocityCurve* Task = UAT_ApplyVelocityCurve::ApplyVelocityCurve(this, DashProgressCurve, DashDirection, NormalizationFactor, Payload.EventMagnitude, DashDistance);

    if (Task == nullptr)
    {
        LOG_ERROR(LogCK, "%s 생성에 실패했습니다. ", NAMEOF(UAT_ApplyVelocityCurve));
        return;
    }

    ActiveVelocityTask = Task;
    Task->ReadyForActivation();
}

이 함수 내부에서 호출하는 함수들에 대한 그래프입니다.:

OnGiveAbility()

void UGA_Dash::OnGiveAbility ( const FGameplayAbilityActorInfo *  ActorInfo, const FGameplayAbilitySpec &  Spec  )

overridevirtual

UGA_CombatBase(으)로부터 재구현되었습니다.

{
    Super::OnGiveAbility(ActorInfo, Spec);
    TotalCurveIntegral = Math::IntegrateNormalizedCurve(DashProgressCurve);
}

SetCharacterCollision()

void UGA_Dash::SetCharacterCollision

(

ECollisionResponse

InChannel

)

const

{
    const ACharacter* Character = Cast<ACharacter>(GetAvatarActorFromActorInfo());

    if (!Character)
    {
        return;
    }

    if (UCapsuleComponent* CapsuleComp = Character->GetCapsuleComponent())
    {
        CapsuleComp->SetCollisionResponseToChannel(ECC_Pawn, InChannel);
    }
}

이 함수를 호출하는 함수들에 대한 그래프입니다.:

멤버 데이터 문서화

ActiveVelocityTask

TObjectPtr<UAT_ApplyVelocityCurve> UGA_Dash::ActiveVelocityTask

protected

DashDirection

FVector UGA_Dash::DashDirection = FVector::ZeroVector

private

DashDistance

float UGA_Dash::DashDistance = 750.0f

protected

DashProgressCurve

TObjectPtr<UCurveFloat> UGA_Dash::DashProgressCurve

protected

TotalCurveIntegral

float UGA_Dash::TotalCurveIntegral = 0.0f

private

---

이 클래스에 대한 문서화 페이지는 다음의 파일들로부터 생성되었습니다.:

• Source/CK_UE/GAS/GA/GA_Dash.h
• Source/CK_UE/GAS/GA/GA_Dash.cpp
