UGA_EnemyAttack 클래스 참조

#include <GA_EnemyAttack.h>

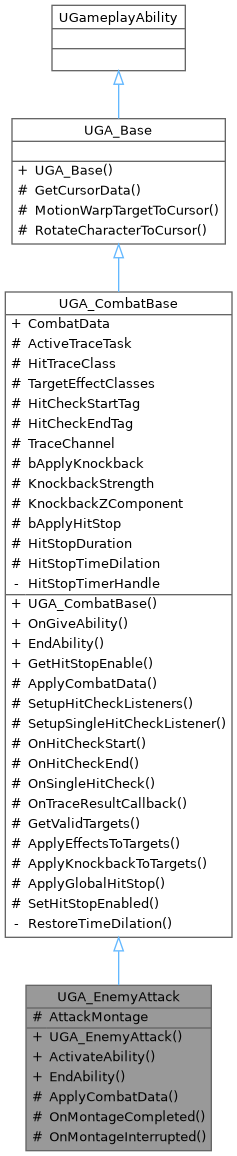

UGA_EnemyAttack에 대한 상속 다이어그램 :

UGA_EnemyAttack에 대한 협력 다이어그램:

Public 멤버 함수
	UGA_EnemyAttack ()
virtual void	ActivateAbility (const FGameplayAbilitySpecHandle Handle, const FGameplayAbilityActorInfo *ActorInfo, const FGameplayAbilityActivationInfo ActivationInfo, const FGameplayEventData *TriggerEventData) override
virtual void	EndAbility (const FGameplayAbilitySpecHandle Handle, const FGameplayAbilityActorInfo *ActorInfo, const FGameplayAbilityActivationInfo ActivationInfo, bool bReplicateEndAbility, bool bWasCancelled) override
UGA_CombatBase(으)로부터 상속된 Public 멤버 함수
	UGA_CombatBase ()
virtual void	OnGiveAbility (const FGameplayAbilityActorInfo *ActorInfo, const FGameplayAbilitySpec &Spec) override
FORCEINLINE bool	GetHitStopEnable () const
UGA_Base(으)로부터 상속된 Public 멤버 함수
	UGA_Base ()

Protected 멤버 함수
virtual void	ApplyCombatData () override
void	OnMontageCompleted ()
void	OnMontageInterrupted ()
UGA_CombatBase(으)로부터 상속된 Protected 멤버 함수
void	SetupHitCheckListeners ()
void	SetupSingleHitCheckListener ()
void	OnHitCheckStart (FGameplayEventData Payload)
void	OnHitCheckEnd (FGameplayEventData Payload)
void	OnSingleHitCheck (FGameplayEventData Payload)
void	OnTraceResultCallback (const FGameplayAbilityTargetDataHandle &TargetDataHandle, float CurrentLevel)
void	GetValidTargets (const FGameplayAbilityTargetDataHandle &TargetDataHandle, TArray< AActor * > &OutValidActors) const
void	ApplyEffectsToTargets (const TArray< AActor * > &TargetActors, float CurrentLevel)
void	ApplyKnockbackToTargets (const TArray< AActor * > &TargetActors, AActor *Attacker)
void	ApplyGlobalHitStop ()
FORCEINLINE void	SetHitStopEnabled (bool bEnable)
UGA_Base(으)로부터 상속된 Protected 멤버 함수
bool	GetCursorData (FVector &TargetPos, FRotator &TargetRot) const
void	MotionWarpTargetToCursor (FName WarpTargetName=FName("Target"))
void	RotateCharacterToCursor ()

Protected 속성
TObjectPtr< UAnimMontage >	AttackMontage
UGA_CombatBase(으)로부터 상속된 Protected 속성
TObjectPtr< UAT_Trace >	ActiveTraceTask
TSubclassOf< ATA_Trace >	HitTraceClass
TArray< TSubclassOf< UGameplayEffect > >	TargetEffectClasses
FGameplayTag	HitCheckStartTag
FGameplayTag	HitCheckEndTag
TEnumAsByte< ECollisionChannel >	TraceChannel
uint8	bApplyKnockback: 1 = false
float	KnockbackStrength = 700.0f
float	KnockbackZComponent = 0.2f
uint8	bApplyHitStop: 1 = false
float	HitStopDuration = 0.05f
float	HitStopTimeDilation = 0.1f

추가로 상속된 멤버들
UGA_CombatBase(으)로부터 상속된 Public 속성
TObjectPtr< UCombatDataBase >	CombatData

생성자 & 소멸자 문서화

UGA_EnemyAttack()

UGA_EnemyAttack::UGA_EnemyAttack

(

)

{
}

멤버 함수 문서화

ActivateAbility()

void UGA_EnemyAttack::ActivateAbility ( const FGameplayAbilitySpecHandle  Handle, const FGameplayAbilityActorInfo *  ActorInfo, const FGameplayAbilityActivationInfo  ActivationInfo, const FGameplayEventData *  TriggerEventData  )

overridevirtual

{
    Super::ActivateAbility(Handle, ActorInfo, ActivationInfo, TriggerEventData);

    if (!CommitAbility(Handle, ActorInfo, ActivationInfo))
    {
        EndAbility(Handle, ActorInfo, ActivationInfo, true, true);
        return;
    }

    if (!AttackMontage)
    {
        EndAbility(Handle, ActorInfo, ActivationInfo, true, true);
        return;
    }

    SetupSingleHitCheckListener();

    if (UAbilityTask_PlayMontageAndWait* MontageTask = UAbilityTask_PlayMontageAndWait::CreatePlayMontageAndWaitProxy(this, NAME_None, AttackMontage))
    {
        MontageTask->OnCompleted.AddDynamic(this, &ThisClass::OnMontageCompleted);
        MontageTask->OnInterrupted.AddDynamic(this, &ThisClass::OnMontageInterrupted);
        MontageTask->OnCancelled.AddDynamic(this, &ThisClass::OnMontageInterrupted);
        MontageTask->ReadyForActivation();
    }
}

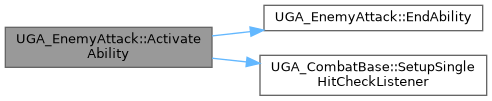

이 함수 내부에서 호출하는 함수들에 대한 그래프입니다.:

ApplyCombatData()

void UGA_EnemyAttack::ApplyCombatData ( )

overrideprotectedvirtual

UGA_CombatBase(으)로부터 재구현되었습니다.

{
    Super::ApplyCombatData();

    if (UEnemyAttackData* Data = Cast<UEnemyAttackData>(CombatData))
    {
        AttackMontage = Data->AttackMontage;
    }
}

EndAbility()

void UGA_EnemyAttack::EndAbility ( const FGameplayAbilitySpecHandle  Handle, const FGameplayAbilityActorInfo *  ActorInfo, const FGameplayAbilityActivationInfo  ActivationInfo, bool  bReplicateEndAbility, bool  bWasCancelled  )

overridevirtual

UGA_CombatBase(으)로부터 재구현되었습니다.

{
    if (ActorInfo && ActorInfo->AvatarActor.IsValid())
    {
        if (ACharacter* AvatarCharacter = Cast<ACharacter>(ActorInfo->AvatarActor.Get()))
        {
            if (AController* Controller = AvatarCharacter->GetController())
            {
                if (UStateTreeComponent* StateTreeComp = Controller->FindComponentByClass<UStateTreeComponent>())
                {
                    FStateTreeEvent Event;
                    Event.Tag = TAG_STATETREE_EVENT_ENDABILITY;

                    StateTreeComp->SendStateTreeEvent(Event);
                }
            }
        }
    }

    Super::EndAbility(Handle, ActorInfo, ActivationInfo, bReplicateEndAbility, bWasCancelled);
}

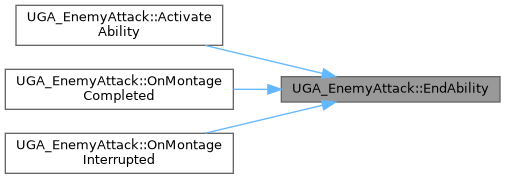

이 함수를 호출하는 함수들에 대한 그래프입니다.:

OnMontageCompleted()

void UGA_EnemyAttack::OnMontageCompleted ( )

protected

{
    EndAbility(CurrentSpecHandle, CurrentActorInfo, CurrentActivationInfo, true, false);
}

이 함수 내부에서 호출하는 함수들에 대한 그래프입니다.:

OnMontageInterrupted()

void UGA_EnemyAttack::OnMontageInterrupted ( )

protected

{
    EndAbility(CurrentSpecHandle, CurrentActorInfo, CurrentActivationInfo, true, true);
}

이 함수 내부에서 호출하는 함수들에 대한 그래프입니다.:

멤버 데이터 문서화

AttackMontage

TObjectPtr<UAnimMontage> UGA_EnemyAttack::AttackMontage

protected

---

이 클래스에 대한 문서화 페이지는 다음의 파일들로부터 생성되었습니다.:

• Source/CK_UE/GAS/GA/Enemy/GA_EnemyAttack.h
• Source/CK_UE/GAS/GA/Enemy/GA_EnemyAttack.cpp
