ATA_Trace 클래스 참조

#include <TA_Trace.h>

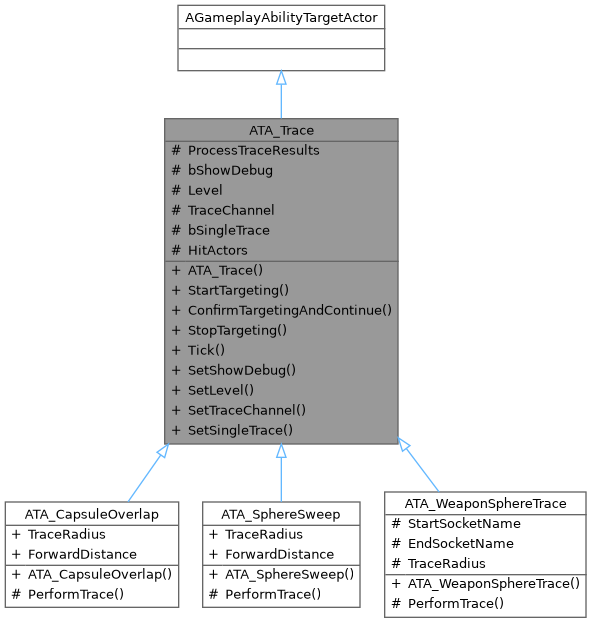

ATA_Trace에 대한 상속 다이어그램 :

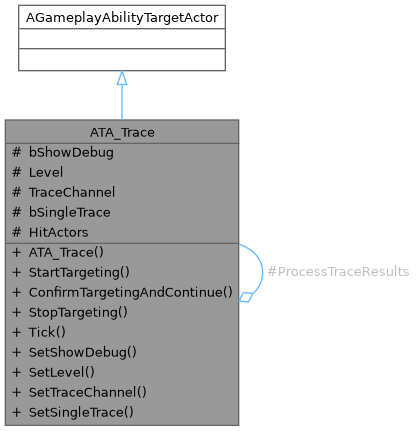

ATA_Trace에 대한 협력 다이어그램:

Public 멤버 함수
	ATA_Trace ()
virtual void	StartTargeting (UGameplayAbility *Ability) override
virtual void	ConfirmTargetingAndContinue () override
virtual void	StopTargeting ()
virtual void	Tick (float DeltaSeconds) override
FORCEINLINE void	SetCombatDataLevel (float InCombatDataLevel)
FORCEINLINE void	SetTraceChannel (ECollisionChannel InChannel)
FORCEINLINE void	SetSingleTrace (bool bInSingleTrace)
FORCEINLINE void	SetMaxHitCountPerTarget (int32 InCount)
FORCEINLINE void	SetMultiHitProfile (UDA_MultiHitProfile *InProfile)
FORCEINLINE void	SetOverrideTraceTransform (const FTransform &InTraceTransform)

Public 속성
FFinisherTargetDataDelegate	OnFinisherTargetDataDelegate

Protected 멤버 함수
FTransform	ResolveTraceTransform () const
bool	IsDebugEnabled () const

Protected 속성
virtual void PerformTrace(TArray< FHitResult > &OutHits) PURE_VIRTUAL(ATA_Trace bool	ProcessTraceResults ()
float	CombatDataLevel = 1.0f
ECollisionChannel	TraceChannel
bool	bSingleTrace = false
int32	MaxHitCountPerTarget = 1
TObjectPtr< UDA_MultiHitProfile >	MultiHitProfile
TMap< TWeakObjectPtr< AActor >, FMultiHitTargetState >	HitMap
TObjectPtr< ACharacter >	Character
TObjectPtr< USkeletalMeshComponent >	CharacterMesh
FTransform	OverrideTraceTransform = FTransform::Identity
uint8	bHasOverrideTraceTransform: 1 = false

생성자 & 소멸자 문서화

ATA_Trace()

ATA_Trace::ATA_Trace

(

)

{
    PrimaryActorTick.bCanEverTick = true;
    PrimaryActorTick.bStartWithTickEnabled = true; // 생성되자마자 틱 켬
}

멤버 함수 문서화

ConfirmTargetingAndContinue()

void ATA_Trace::ConfirmTargetingAndContinue ( )

overridevirtual

{
    if (bSingleTrace)
    {
        SetActorTickEnabled(false);
        if (ProcessTraceResults() == false)
        {
            FGameplayAbilityTargetDataHandle EmptyHandle;
            TargetDataReadyDelegate.Broadcast(EmptyHandle);
        }
    }
    else
    {
        SetActorTickEnabled(true);
    }
}

IsDebugEnabled()

bool ATA_Trace::IsDebugEnabled ( ) const

protected

{
    return FCombatDebug::ShouldDrawCombatTrace(SourceActor);
}

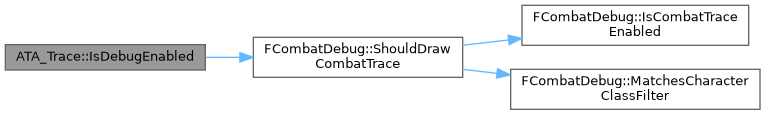

이 함수 내부에서 호출하는 함수들에 대한 그래프입니다.:

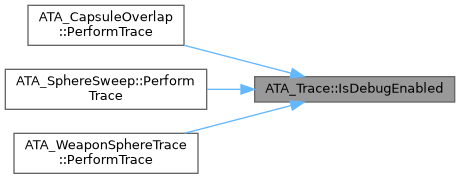

이 함수를 호출하는 함수들에 대한 그래프입니다.:

ResolveTraceTransform()

FTransform ATA_Trace::ResolveTraceTransform ( ) const

protected

{
    if (bHasOverrideTraceTransform)
    {
        return OverrideTraceTransform;
    }

    if (IsValid(Character))
    {
        return Character->GetActorTransform();
    }

    if (IsValid(SourceActor))
    {
        return SourceActor->GetActorTransform();
    }

    return FTransform::Identity;
}

이 함수를 호출하는 함수들에 대한 그래프입니다.:

SetCombatDataLevel()

FORCEINLINE void ATA_Trace::SetCombatDataLevel ( float  InCombatDataLevel )

inline

    {
        CombatDataLevel = InCombatDataLevel;
    }

SetMaxHitCountPerTarget()

FORCEINLINE void ATA_Trace::SetMaxHitCountPerTarget ( int32  InCount )

inline

    {
        MaxHitCountPerTarget = FMath::Max(1, InCount);
    }

SetMultiHitProfile()

FORCEINLINE void ATA_Trace::SetMultiHitProfile ( UDA_MultiHitProfile *  InProfile )

inline

    {
        MultiHitProfile = InProfile;
    }

SetOverrideTraceTransform()

FORCEINLINE void ATA_Trace::SetOverrideTraceTransform ( const FTransform &  InTraceTransform )

inline

    {
        OverrideTraceTransform = InTraceTransform;
        bHasOverrideTraceTransform = true;
    }

SetSingleTrace()

FORCEINLINE void ATA_Trace::SetSingleTrace ( bool  bInSingleTrace )

inline

    {
        bSingleTrace = bInSingleTrace;
    }

SetTraceChannel()

FORCEINLINE void ATA_Trace::SetTraceChannel ( ECollisionChannel  InChannel )

inline

    {
        TraceChannel = InChannel;
    }

StartTargeting()

void ATA_Trace::StartTargeting ( UGameplayAbility *  Ability )

overridevirtual

ATA_WeaponSphereTrace에서 재구현되었습니다.

{
    Super::StartTargeting(Ability);

    SourceActor = Ability->GetCurrentActorInfo()->AvatarActor.Get();
    HitMap.Empty();

    Character = Cast<ACharacter>(SourceActor);
    CharacterMesh = IsValid(Character) ? Character->GetMesh() : nullptr;
}

StopTargeting()

void ATA_Trace::StopTargeting ( )

virtual

ATA_WeaponSphereTrace에서 재구현되었습니다.

{
    SetActorTickEnabled(false);
    HitMap.Empty();

    Character = nullptr;
    CharacterMesh = nullptr;
    bHasOverrideTraceTransform = false;
    OverrideTraceTransform = FTransform::Identity;
}

Tick()

void ATA_Trace::Tick ( float  DeltaSeconds )

overridevirtual

{
    Super::Tick(DeltaSeconds);
    ProcessTraceResults();
}

멤버 데이터 문서화

bHasOverrideTraceTransform

uint8 ATA_Trace::bHasOverrideTraceTransform

protected

bSingleTrace

bool ATA_Trace::bSingleTrace = false

protected

Character

TObjectPtr<ACharacter> ATA_Trace::Character

protected

런타임 캐싱

CharacterMesh

TObjectPtr<USkeletalMeshComponent> ATA_Trace::CharacterMesh

protected

런타임 캐싱

CombatDataLevel

float ATA_Trace::CombatDataLevel = 1.0f

protected

HitMap

TMap<TWeakObjectPtr<AActor>, FMultiHitTargetState> ATA_Trace::HitMap

protected

MaxHitCountPerTarget

int32 ATA_Trace::MaxHitCountPerTarget = 1

protected

MultiHitProfile

TObjectPtr<UDA_MultiHitProfile> ATA_Trace::MultiHitProfile

protected

OnFinisherTargetDataDelegate

FFinisherTargetDataDelegate ATA_Trace::OnFinisherTargetDataDelegate

OverrideTraceTransform

FTransform ATA_Trace::OverrideTraceTransform = FTransform::Identity

protected

ProcessTraceResults

bool ATA_Trace::ProcessTraceResults

protected

TraceChannel

ECollisionChannel ATA_Trace::TraceChannel

protected

---

이 클래스에 대한 문서화 페이지는 다음의 파일들로부터 생성되었습니다.:

• Source/CK_UE/GAS/GA/TA/TA_Trace.h
• Source/CK_UE/GAS/GA/TA/TA_Trace.cpp
