ATA_WeaponSphereTrace 클래스 참조

#include <TA_WeaponSphereTrace.h>

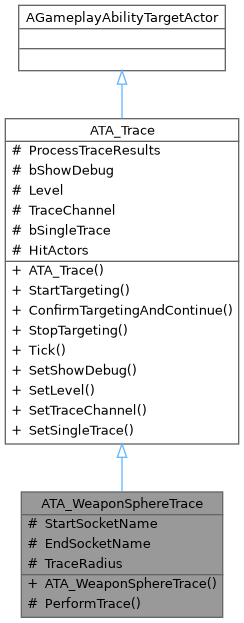

ATA_WeaponSphereTrace에 대한 상속 다이어그램 :

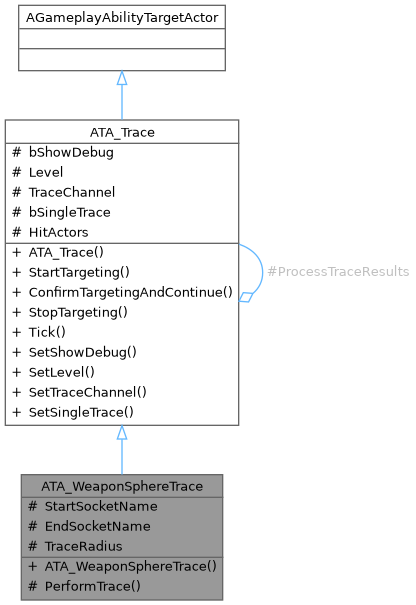

ATA_WeaponSphereTrace에 대한 협력 다이어그램:

Public 멤버 함수
	ATA_WeaponSphereTrace ()
ATA_Trace(으)로부터 상속된 Public 멤버 함수
	ATA_Trace ()
virtual void	StartTargeting (UGameplayAbility *Ability) override
virtual void	ConfirmTargetingAndContinue () override
virtual void	StopTargeting ()
virtual void	Tick (float DeltaSeconds) override
FORCEINLINE void	SetShowDebug (bool InShowDebug)
FORCEINLINE void	SetLevel (float InLevel)
FORCEINLINE void	SetTraceChannel (ECollisionChannel InChannel)
FORCEINLINE void	SetSingleTrace (bool bInSingleTrace)

Protected 멤버 함수
virtual void	PerformTrace (TArray< FHitResult > &OutHits) override

Protected 속성
FName	StartSocketName = FName("TraceStart")
FName	EndSocketName = FName("TraceEnd")
float	TraceRadius = 30.0f
ATA_Trace(으)로부터 상속된 Protected 속성
virtual void PerformTrace(TArray< FHitResult > &OutHits) PURE_VIRTUAL(ATA_Trace void	ProcessTraceResults ()
bool	bShowDebug = true
float	Level = 1.0f
ECollisionChannel	TraceChannel
bool	bSingleTrace = false
TSet< TWeakObjectPtr< AActor > >	HitActors

생성자 & 소멸자 문서화

ATA_WeaponSphereTrace()

ATA_WeaponSphereTrace::ATA_WeaponSphereTrace

(

)

{
    TraceRadius = 30.0f;
}

멤버 함수 문서화

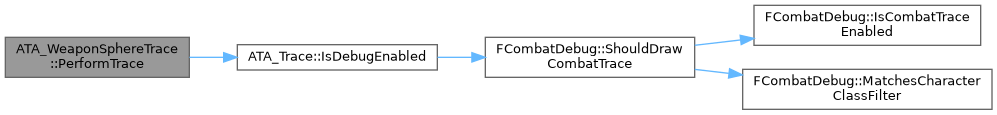

PerformTrace()

void ATA_WeaponSphereTrace::PerformTrace ( TArray< FHitResult > &  OutHits )

overrideprotectedvirtual

{
    ACharacter* Character = Cast<ACharacter>(SourceActor);
    if (!Character)
    {
        return;
    }

    UPrimitiveComponent* WeaponMesh = nullptr;
    if (ACK_CharacterPlayer* CKPlayer = Cast<ACK_CharacterPlayer>(Character))
    {
        WeaponMesh = CKPlayer->GetWeaponMesh();
    }

    if (!WeaponMesh)
    {
        return;
    }

    if (!WeaponMesh->DoesSocketExist(StartSocketName) || !WeaponMesh->DoesSocketExist(EndSocketName))
    {
        return;
    }

    const FVector Start = WeaponMesh->GetSocketLocation(StartSocketName);
    const FVector End = WeaponMesh->GetSocketLocation(EndSocketName);

    if (Start.Equals(End, 1.0f))
    {
        return;
    }

    FCollisionQueryParams Params(SCENE_QUERY_STAT(ATA_WeaponSphereTrace), false, Character);

    GetWorld()->SweepMultiByChannel(
        OutHits, Start, End, FQuat::Identity,
        TraceChannel, FCollisionShape::MakeSphere(TraceRadius), Params);

#if ENABLE_DRAW_DEBUG
    if (bShowDebug)
    {
        FColor DrawColor = OutHits.Num() > 0 ? FColor::Green : FColor::Red;
        FVector Center = Start + (End - Start) * 0.5f;
        float HalfHeight = (End - Start).Size() * 0.5f;
        FQuat Rotation = FRotationMatrix::MakeFromZ(End - Start).ToQuat();

        DrawDebugCapsule(GetWorld(), Center, HalfHeight, TraceRadius, Rotation, DrawColor, false, 0.1f);
    }
#endif
}

멤버 데이터 문서화

EndSocketName

FName ATA_WeaponSphereTrace::EndSocketName = FName("TraceEnd")

protected

StartSocketName

FName ATA_WeaponSphereTrace::StartSocketName = FName("TraceStart")

protected

TraceRadius

float ATA_WeaponSphereTrace::TraceRadius = 30.0f

protected

---

이 클래스에 대한 문서화 페이지는 다음의 파일들로부터 생성되었습니다.:

• Source/CK_UE/GAS/GA/TA/TA_WeaponSphereTrace.h
• Source/CK_UE/GAS/GA/TA/TA_WeaponSphereTrace.cpp
