UGA_Attack 클래스 참조

#include <GA_Attack.h>

UGA_Attack에 대한 상속 다이어그램 :

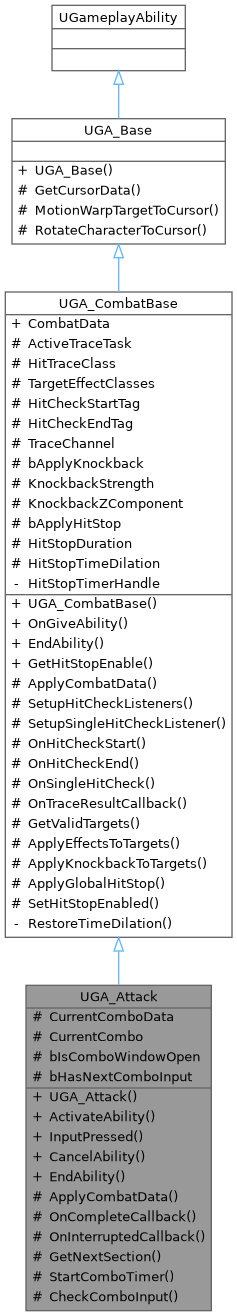

UGA_Attack에 대한 협력 다이어그램:

Public 멤버 함수
	UGA_Attack ()
virtual void	ActivateAbility (const FGameplayAbilitySpecHandle Handle, const FGameplayAbilityActorInfo *ActorInfo, const FGameplayAbilityActivationInfo ActivationInfo, const FGameplayEventData *TriggerEventData) override
virtual void	InputPressed (const FGameplayAbilitySpecHandle Handle, const FGameplayAbilityActorInfo *ActorInfo, const FGameplayAbilityActivationInfo ActivationInfo) override
virtual void	CancelAbility (const FGameplayAbilitySpecHandle Handle, const FGameplayAbilityActorInfo *ActorInfo, const FGameplayAbilityActivationInfo ActivationInfo, bool bReplicateCancelAbility) override
virtual void	EndAbility (const FGameplayAbilitySpecHandle Handle, const FGameplayAbilityActorInfo *ActorInfo, const FGameplayAbilityActivationInfo ActivationInfo, bool bReplicateEndAbility, bool bWasCancelled) override
UGA_CombatBase(으)로부터 상속된 Public 멤버 함수
	UGA_CombatBase ()
virtual void	OnGiveAbility (const FGameplayAbilityActorInfo *ActorInfo, const FGameplayAbilitySpec &Spec) override
FORCEINLINE bool	GetHitStopEnable () const
UGA_Base(으)로부터 상속된 Public 멤버 함수
	UGA_Base ()

Protected 멤버 함수
virtual void	ApplyCombatData () override
void	OnCompleteCallback ()
void	OnInterruptedCallback ()
FName	GetNextSection ()
void	StartComboTimer ()
void	CheckComboInput ()
UGA_CombatBase(으)로부터 상속된 Protected 멤버 함수
void	SetupHitCheckListeners ()
void	SetupSingleHitCheckListener ()
void	OnHitCheckStart (FGameplayEventData Payload)
void	OnHitCheckEnd (FGameplayEventData Payload)
void	OnSingleHitCheck (FGameplayEventData Payload)
void	OnTraceResultCallback (const FGameplayAbilityTargetDataHandle &TargetDataHandle, float CurrentLevel)
void	GetValidTargets (const FGameplayAbilityTargetDataHandle &TargetDataHandle, TArray< AActor * > &OutValidActors) const
void	ApplyEffectsToTargets (const TArray< AActor * > &TargetActors, float CurrentLevel)
void	ApplyKnockbackToTargets (const TArray< AActor * > &TargetActors, AActor *Attacker)
void	ApplyGlobalHitStop ()
FORCEINLINE void	SetHitStopEnabled (bool bEnable)
UGA_Base(으)로부터 상속된 Protected 멤버 함수
bool	GetCursorData (FVector &TargetPos, FRotator &TargetRot) const
void	MotionWarpTargetToCursor (FName WarpTargetName=FName("Target"))
void	RotateCharacterToCursor ()

Protected 속성
TObjectPtr< class UComboActionData >	CurrentComboData
uint8	CurrentCombo = 0
bool	bIsComboWindowOpen = false
bool	bHasNextComboInput = false
UGA_CombatBase(으)로부터 상속된 Protected 속성
TObjectPtr< UAT_Trace >	ActiveTraceTask
TSubclassOf< ATA_Trace >	HitTraceClass
TArray< TSubclassOf< UGameplayEffect > >	TargetEffectClasses
FGameplayTag	HitCheckStartTag
FGameplayTag	HitCheckEndTag
TEnumAsByte< ECollisionChannel >	TraceChannel
uint8	bApplyKnockback: 1 = false
float	KnockbackStrength = 700.0f
float	KnockbackZComponent = 0.2f
uint8	bApplyHitStop: 1 = false
float	HitStopDuration = 0.05f
float	HitStopTimeDilation = 0.1f

추가로 상속된 멤버들
UGA_CombatBase(으)로부터 상속된 Public 속성
TObjectPtr< UCombatDataBase >	CombatData

생성자 & 소멸자 문서화

UGA_Attack()

UGA_Attack::UGA_Attack

(

)

{

}

멤버 함수 문서화

ActivateAbility()

void UGA_Attack::ActivateAbility ( const FGameplayAbilitySpecHandle  Handle, const FGameplayAbilityActorInfo *  ActorInfo, const FGameplayAbilityActivationInfo  ActivationInfo, const FGameplayEventData *  TriggerEventData  )

overridevirtual

{
    Super::ActivateAbility(Handle, ActorInfo, ActivationInfo, TriggerEventData);

    if (!CommitAbility(Handle, ActorInfo, ActivationInfo))
    {
        EndAbility(Handle, ActorInfo, ActivationInfo, false, true);
        return;
    }

    if (!CurrentComboData || !CurrentComboData->ComboMontage)
    {
        EndAbility(Handle, ActorInfo, ActivationInfo, true, true);
        return;
    }

    SetupHitCheckListeners();

    MotionWarpTargetToCursor();

    UAbilityTask_PlayMontageAndWait* PlayAttackTask = UAbilityTask_PlayMontageAndWait::CreatePlayMontageAndWaitProxy(this, TEXT("PlayAttack"), CurrentComboData->ComboMontage, 1.0f, GetNextSection());
    PlayAttackTask->OnCompleted.AddDynamic(this, &ThisClass::OnCompleteCallback);
    PlayAttackTask->OnInterrupted.AddDynamic(this, &ThisClass::OnInterruptedCallback);
    PlayAttackTask->ReadyForActivation();

    StartComboTimer();
}

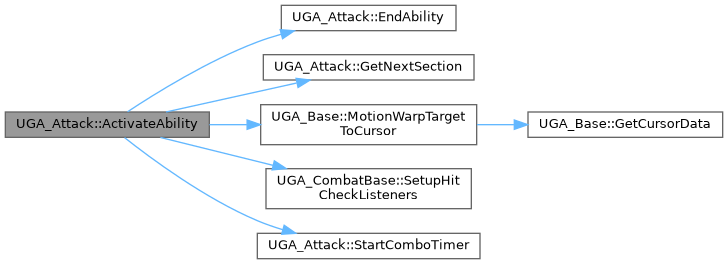

이 함수 내부에서 호출하는 함수들에 대한 그래프입니다.:

ApplyCombatData()

void UGA_Attack::ApplyCombatData ( )

overrideprotectedvirtual

UGA_CombatBase(으)로부터 재구현되었습니다.

{
    Super::ApplyCombatData();
    UAttackData* Data = Cast<UAttackData>(CombatData);
    if (!Data)
    {
        return;

    }

    CurrentComboData = Data->ComboData;
}

CancelAbility()

void UGA_Attack::CancelAbility ( const FGameplayAbilitySpecHandle  Handle, const FGameplayAbilityActorInfo *  ActorInfo, const FGameplayAbilityActivationInfo  ActivationInfo, bool  bReplicateCancelAbility  )

overridevirtual

{
    Super::CancelAbility(Handle, ActorInfo, ActivationInfo, bReplicateCancelAbility);
}

CheckComboInput()

void UGA_Attack::CheckComboInput ( )

protected

{
    bIsComboWindowOpen = false;
    if (bHasNextComboInput)
    {
        MotionWarpTargetToCursor();

        MontageJumpToSection(GetNextSection());
        StartComboTimer();
        bHasNextComboInput = false;
    }
}

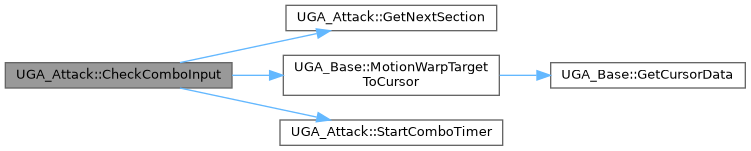

이 함수 내부에서 호출하는 함수들에 대한 그래프입니다.:

EndAbility()

void UGA_Attack::EndAbility ( const FGameplayAbilitySpecHandle  Handle, const FGameplayAbilityActorInfo *  ActorInfo, const FGameplayAbilityActivationInfo  ActivationInfo, bool  bReplicateEndAbility, bool  bWasCancelled  )

overridevirtual

UGA_CombatBase(으)로부터 재구현되었습니다.

{
    // 초기화
    CurrentCombo = 0;
    bIsComboWindowOpen = false;
    bHasNextComboInput = false;
    Super::EndAbility(Handle, ActorInfo, ActivationInfo, bReplicateEndAbility, bWasCancelled);
}

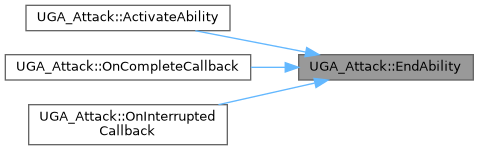

이 함수를 호출하는 함수들에 대한 그래프입니다.:

GetNextSection()

FName UGA_Attack::GetNextSection ( )

protected

{
    CurrentCombo = FMath::Clamp(CurrentCombo + 1, 1, CurrentComboData->MaxComboCount);
    FName NextSection = *FString::Printf(TEXT("%s%d"), *CurrentComboData->MontageSectionNamePrefix, CurrentCombo);
    LOG_INFO(LogCKCharacter, "Next Section Name: %s", *NextSection.ToString());
    return NextSection;
}

이 함수를 호출하는 함수들에 대한 그래프입니다.:

InputPressed()

void UGA_Attack::InputPressed ( const FGameplayAbilitySpecHandle  Handle, const FGameplayAbilityActorInfo *  ActorInfo, const FGameplayAbilityActivationInfo  ActivationInfo  )

overridevirtual

{
    if (bIsComboWindowOpen)
    {
        bHasNextComboInput = true;
    }
}

OnCompleteCallback()

void UGA_Attack::OnCompleteCallback ( )

protected

{
    bool bWasCancelled = false;
    EndAbility(CurrentSpecHandle, CurrentActorInfo, CurrentActivationInfo, true, bWasCancelled);
}

이 함수 내부에서 호출하는 함수들에 대한 그래프입니다.:

OnInterruptedCallback()

void UGA_Attack::OnInterruptedCallback ( )

protected

{
    bool bWasCancelled = true;
    EndAbility(CurrentSpecHandle, CurrentActorInfo, CurrentActivationInfo, true, bWasCancelled);
}

이 함수 내부에서 호출하는 함수들에 대한 그래프입니다.:

StartComboTimer()

void UGA_Attack::StartComboTimer ( )

protected

{
    int32 Comboindex = CurrentCombo - 1;
    if (!CurrentComboData || !CurrentComboData->EffectiveFrameCount.IsValidIndex(Comboindex))
    {
        return;
    }

    const float ComboEffectiveTime = CurrentComboData->EffectiveFrameCount[Comboindex] / CurrentComboData->FrameRate;
    if (ComboEffectiveTime > 0.0f)
    {
        bIsComboWindowOpen = true;

        if (UAbilityTask_WaitDelay* WaitTask = UAbilityTask_WaitDelay::WaitDelay(this, ComboEffectiveTime))
        {
            WaitTask->OnFinish.AddDynamic(this, &ThisClass::CheckComboInput);
            WaitTask->ReadyForActivation();
        }
    }
}

이 함수를 호출하는 함수들에 대한 그래프입니다.:

멤버 데이터 문서화

bHasNextComboInput

bool UGA_Attack::bHasNextComboInput = false

protected

bIsComboWindowOpen

bool UGA_Attack::bIsComboWindowOpen = false

protected

CurrentCombo

uint8 UGA_Attack::CurrentCombo = 0

protected

CurrentComboData

TObjectPtr<class UComboActionData> UGA_Attack::CurrentComboData

protected

---

이 클래스에 대한 문서화 페이지는 다음의 파일들로부터 생성되었습니다.:

• Source/CK_UE/GAS/GA/GA_Attack.h
• Source/CK_UE/GAS/GA/GA_Attack.cpp
